JIB CRANE

JIB CRANE

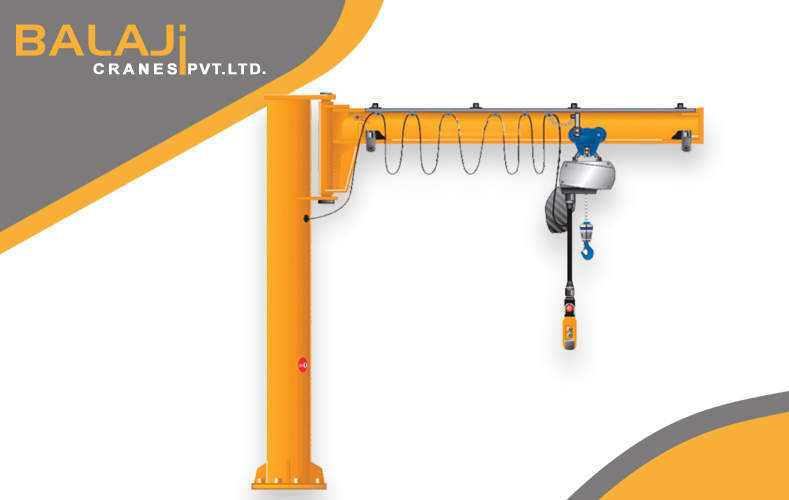

The name on the Jib crane stands for superior quality product. They are an important part of any material handling system. They help reduce labour cost by avoiding the time lost on waiting for an overhead crane or forklift. A Jib crane can be easily handled by one person and is very cost-effective. Capacities available up to 3 TONS and spans up to 6 meters as standard.

Options include free standing or wall mounted. By combining lightweight construction techniques we have developed a Jib crane that is not only lightweight but produces minimum amount of friction thus reducing operator fatigue and wear and tear. Optional Features : Two speed motion & Flameproof.

Jib cranes are available in lifting capacities ranging from Jib cranes designed conforming to IS 807 & IS 3177. Jib arm shall be fabricated from heavy section I-Beam or of triangular truss construction to keep the deflection in acceptable limits. Self aligned type double roller bearings with thrust & roller bearings take care of horizontal, vertical and radial thrust loads. Jib arm is suitable to accommodate trolley with chain pulley block for manual travel and lifting operations or electric wire rope hoist for electric operations. 250 Kgs to 3000 Kgs. and arm radius from 1 mtr. to 15 mtrs. to suit the required application.
